Concept of IPS system
IPS System stands for “Innovative Prestressed Support" system which uses tendons and short supports to replace conventional struts and wales.
Advantages of IPS system
- Reduced steel and labor
- Reduced costs of both earth retention and structure construction
- Reduced periods of both earth retention and structure construction
- Eco-friendly method of excellent steel recycling rate
- Reduction of ground deformation by prestress effect
- Safety increase via ductile flexural failure mode of IPS system
- Easy to excavate, to move soil out, to move materials in and to do all underground works
because of the wide open space of IPS system

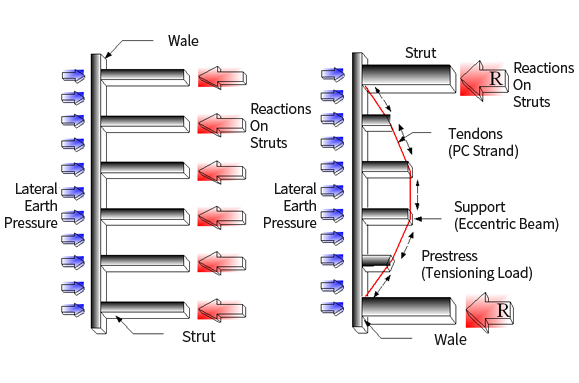

Basic Concept of IPS system

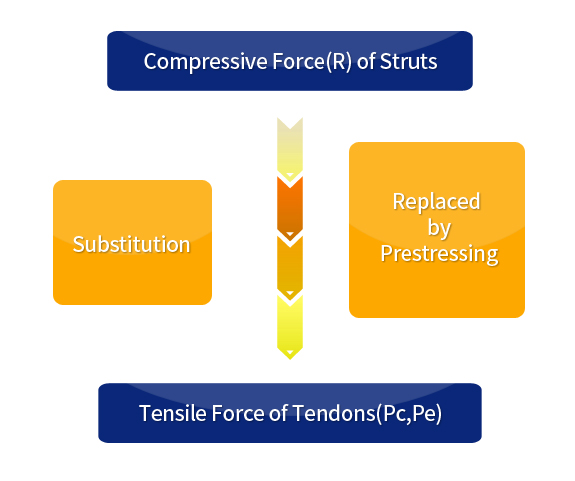

The Principle of IPS System

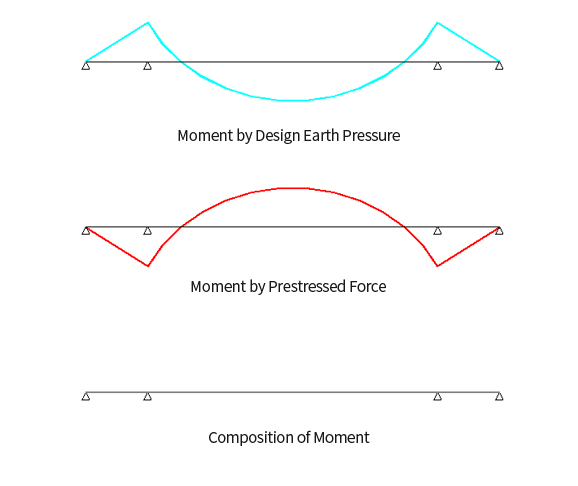

Moment Reduction Effect in IPS System
